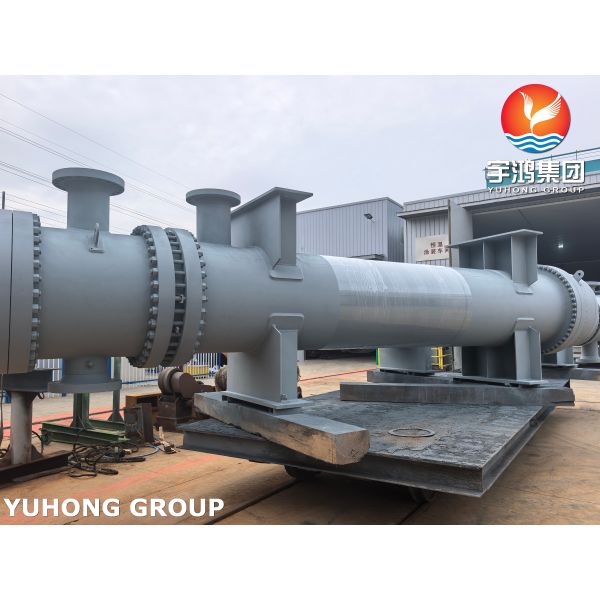

High-Performance Horizontal Shell and Tube Heat Exchanger for Industrial Process Cooling and Heating
This horizontal shell and tube heat exchanger is designed for efficient thermal transfer in demanding industrial environments where reliability, pressure resistance, and long service life are essential. Manufactured with a robust cylindrical shell structure and reinforced flange connections, it is suitable for handling high-pressure and high-temperature fluids across a wide range of applications.
Main Components
The equipment features precision-engineered nozzles, heavy-duty saddle supports, and bolted channel covers for convenient inspection and maintenance. Its optimized internal tube bundle design ensures excellent heat transfer efficiency while minimizing pressure drop and operational energy consumption.
1.Heat Exchanger Tubes
The internal tube bundle is the core of heat transfer performance. We supply high-quality boiler tubes, heat exchanger tubes, stainless steel tubes, duplex tubes, and nickel alloy tubes with excellent corrosion resistance and mechanical strength.
Common tube materials include:
ASTM A179
ASTM A192
ASTM A213 TP304 / TP316L
Duplex Stainless Steel 2205 / 2507
Incoloy 800 / 825
Monel Alloy Tubes
Precision tube manufacturing ensures high thermal efficiency and long service life.
2.Forged Flanges
Heavy-duty forged flanges are used for channel covers, nozzle connections, and shell-side piping interfaces. High-pressure flange design ensures sealing reliability and maintenance convenience.
Common flange standards include:
ASME B16.5
ASME B16.47
EN 1092-1
DIN Standards
Available types:
Welding Neck Flange
Blind Flange
Slip On Flange
Long Weld Neck Flange
Custom Pressure Vessel Flanges
3.Precision Machined Tube Sheet
The tube sheet is one of the most critical parts of shell and tube heat exchangers. Precision drilling, CNC machining, and strict tolerance control directly affect sealing performance and exchanger lifespan.
Available materials:
Carbon Steel Cladded Tube Sheet
Stainless Steel Tube Sheet
Duplex Stainless Steel Tube Sheet
Titanium Tube Sheet
Nickel Alloy Tube Sheet
We provide grooved tube sheets, strength welding design, and customized expansion solutions according to project requirements.
Applications
This shell and tube heat exchanger is widely used in:
Chemical Processing Plants
Fertilizer Production Units
Power Generation Systems
Desalination Plants
Marine Engineering
LNG Auxiliary Systems
Metallurgical Industry
Pulp and Paper Mills
Pharmaceutical Plants
Industrial Utility Stations
District Heating Systems
It is suitable for liquid-liquid, gas-liquid, steam heating, and process gas cooling duties.
Widely used in chemical processing, fertilizer production, power generation, marine engineering, desalination systems, and industrial utility stations, this exchanger performs effectively in both cooling and heating duties. It can be customized for liquid-liquid, gas-liquid, or steam service conditions according to project requirements.
Fabricated in compliance with international standards such as ASME, TEMA, and customer-specific specifications, the unit can be supplied in carbon steel, stainless steel, duplex steel, or nickel alloy materials depending on corrosion resistance and process demands.
At Yuhong Group, we provide not only high-quality heat exchangers but also complete engineering support, material traceability, strict quality inspection, and global project delivery solutions for EPC contractors and industrial end users worldwide.
